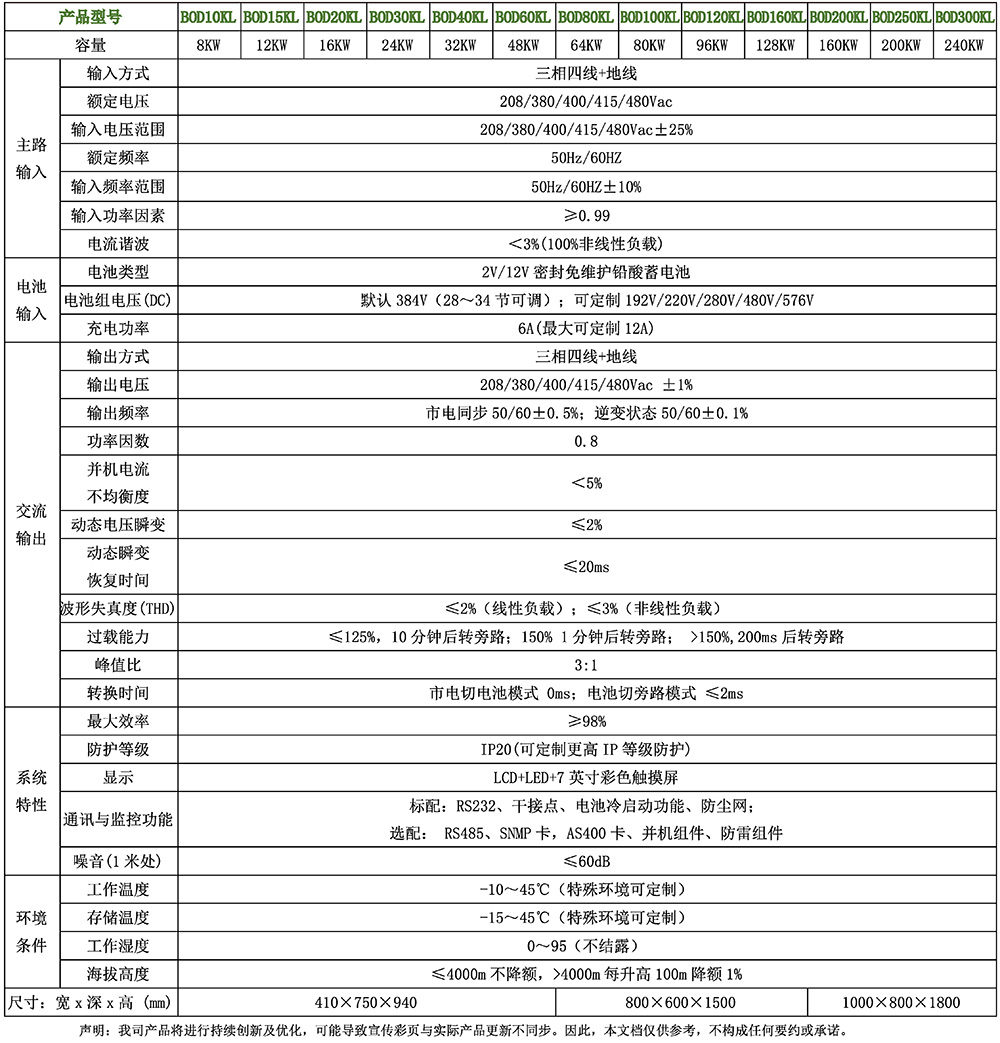

Power frequency BOD series 10KVA~300KVA
Three in three out industrial grade UPS

●Output active power, input capacity x 0.8

●Dual conversion online, zero switching time, sine wave output

●Adopting DSP digital control technology and thyristor rectification

●Municipal power input, ultra wide voltage and frequency input range

●Equipped with efficient ECO mode

●Capable of RPA (redundant parallel) function, with a maximum of 31+1

●Equipped with DC cold start function, flexible to use

●Input 6 pulses, 12 pulses, 18 pulses, 24 pulses optional

●Output isolation transformer, compatible with generator input

●LED+LCD+color touch screen display, user-friendly human-machine interface

●Meet multiple monitoring functions such as SNMP+USB+dry contacts+MODBUS communication card (with RS-232, RS485, RS422, RJ45, USB communication interfaces and 5 output dry nodes, 5 input dry nodes)

The power frequency BOD series three in three out online industrial grade UPS has a single unit capacity ranging from 10KVA to 1200KVA. This series of UPS adopts the 6th generation IGBT power devices and static switches, and uses the latest dual core DSP to achieve fully digital control; Adopting industrial grade high standard design, standard output isolation transformer, internal electrical connection adopts busbar connection method and is wrapped with low smoke halogen-free resin, which can withstand high voltage of 20000 volts/mm and has good heat dissipation; Greatly reducing the size and weight of the power supply; Equipped with comprehensive detection and protection functions, humanized communication and monitoring functions, standard RS232 interface, optional SNMP card, RS485, Wi Fi function and other communication interfaces, convenient for centralized and remote monitoring of UPS. The operation interface adopts LED+LCD color touch screen display, allowing users to have a more intuitive understanding of the operation status of UPS and facilitate operation; The designed service life is over 20 years.

Widely used in various industries such as government, finance, enterprise, communication, education, rail transit, healthcare, meteorology, broadcasting and television, industry and commerce taxation, energy and power, industrial manufacturing, etc.
